Environmentally Efficient Modular Data Center

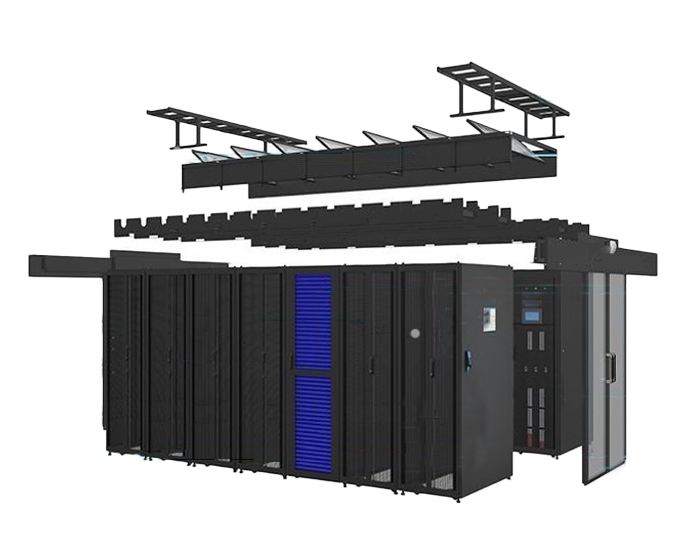

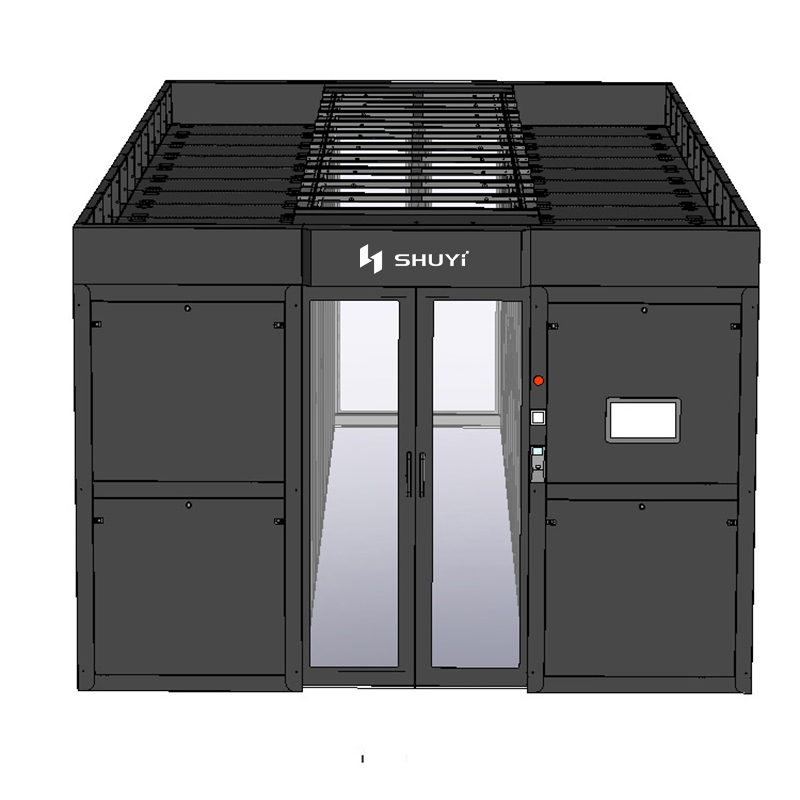

SHUYI Hot& Cold Aisle Containment is an integrated Modular Data Center Solution which can flexibly adopt the layout of double-row cabinets + cold/hot aisle or single-row cabinets + cold/hot aisle according to user site conditions. Under the two structural layouts, all subsystems such as cabinets, channels, power supply and distribution, refrigeration, security, environmental monitoring and management, and wiring can be integrated according to user needs, providing customers with new data of rapid deployment, high efficiency and energy saving, compact space, and flexible expansion central solution. Power 3N-380V-50HZ Operating Voltage 380v/220v Cooling In-row Precision Air Conditioning UPS Power Supply 380VAC/400VAC/415VAC(3Phase 5Wire),50/60Hz Certification CE,ISO Monitoring System Power supply, battery, power distribution, air conditioning,etc.

SHUYI I-Rack series intelligent cabinet data center includes the following systems: UPS, power distribution unit, cooling system, cabinet system, wiring system, monitoring and fire systems. It is a kind of integrated solution for IT devices which also provides a safe, reliable and high efficient operation environment for electrical devices. Refrigerant R410a / R407c UPS Capacity 3-10KVA Size 42U for Standard Units Warranty One year Input Power Supply 220V AC 50HZ-60HZ, 120V AC, 380V AC optional Cooling Type DC inverter rack mounted precision air conditioner

SHUYI I-Module Modular Data Center Solution adopts a modular design and integrates data center infrastructure subsystems such as cabinet systems, channel systems, power supply and distribution systems, air conditioning systems, and monitoring systems to provide customers with rapid deployment, high efficiency, energy saving, a new type of data center with compact space and flexible expansion can effectively meet customers' requirements for efficient, reliable, fast, flexible, and intelligent management of data centers in the cloud era. Power 3N-380V-50HZ Operating Voltage 380v/220v Cooling In-row Precision Air Conditioning UPS Power Supply 380VAC/400VAC/415VAC(3Phase 5Wire),50/60Hz Certification CE,ISO Monitoring System Power supply, battery, power distribution, air conditioning,etc.

Container Data Center means the datacenter is not located in the computer room, but in a large container with being placed in the open space with network and power supply. Containers generally use in-row precision air conditioning for refrigeration, and its biggest advantage is that it occupies a small area. SHUYI I-Container series is a kind of Prefabricated Data Center Solution with the function of power supply and distribution, temperature control, cabinets, management, fire, lightning protection and grounding and so on. It is a highly centralized, multi-purpose data center module featuring high reliability and security, rapid deployment and easy relocation, low cost and low energy consumption. Container Size 20'/40' HQ Rack Quantity 4-10 pcs Single Rack Capacity 3-10KW Rated Power 380/400/415 VAC Cooloing System In-row precision air conditionings Power Supply 25kva*2/25kva*4 N+1 modular UPS

SHUYI Bitcoin Mining Data Center (CBMDC) is a MOBILE mining farm which adopts with standard 20ft or 40ft container size for construction. It has excellent facility for migration and can work anywhere after connecting electricity and networks. Stable quality ensures the smooth running which guarantee sustainable good yield. The low power consumption, easy mobility, and high working stability makes it as an iconic design in the cryptocurrency mining industry. Mobile Data Center Size AntMiner units 20Ft Container Size 150 units/20Ft Container Size 40Ft Container Size 300 units/40Ft Container Size Capacity Cooling Type 12kw-75kw Air Cooling Transportability Configuration Support Customized

DataCool series large and medium-sized room-level precision air conditioners adopts international cutting-edge constant temperature and constant humidity technology to meet the increasing demand for ultra-efficient, large capacity precision cooling systems that deliver extremely quiet and accurate climate control for critical data centre applications. The cooling capacity range of Precision Room Cooling System is 20-200kW, suiting most precision cooling applications. There are a variety of air supply and return methods, which can be selected and matched according.

SHUYI SY-R series intelligent high-frequency on-line UPS adopts full digital control technology and the latest high-frequency power conversion technology. It has the characteristics of high efficiency and high power factor. It integrates multiple functions such as AC voltage regulation, backup power supply, and peak surge absorption, which can meet the power protection of harsh grid environment and provide pure, safe and stable power supply for the load. Capacity Input Voltage Range 1KVA -10KVA 110-300VAC Frequency Power Factor 40-70Hz ≥0.99

Soeteck SY-T Series UPS are intelligent high frequency pure online UPS, which are generally used on places required high quality electricity, such as hospital equipment, corporations, IT loading equipment, industrial computer terminal. As UPS inverter circuit always in a working state, the stored energy of UPS can be inverted and output alternating current without switching. Capacity Connection Mode 10KVA -30KVA Three phase+Four wire Input Voltage Output Voltage 380/400/415VAC 200/208/220/230/240VAC Frequency Battery Cells 40-70Hz 16-20 optional
