AICoolit™ Smart Liquid Cooling Cabinet for AI Data Center

Soeteck Server Room CDU Coolant Distribution Unit is a high-reliability core component of liquid cooling solutions for large-scale liquid-cooled data centers, HPC clusters, and AI training scenarios. It is ideal for deployments with over 100 cabinets and CPU/GPU-intensive workloads (e.g., scientific computing), providing dedicated coolant distribution. With a cooling capacity of 200kW–2000kW, it incorporates N+1 redundant pumps and leak monitoring, supports online coolant maintenance, and enables remote management via Modbus/BACnet protocols for efficient operations. Cooling Capacity 800/1000/1350/2000 kW Inlet Flow Rate 69.04-173.73 m³/h Outlet Flow Rate 72.84-190.78 m³/h Rated Power 15.5/18.5/22.5/33.0 kW Fluid Type Water / 25% EG W*D*H 980*1480*2000 mm

Soeteck Smart Rack CDU Coolant Distribution Unit is a compact, flexible core component of liquid cooling solutions for small-to-medium data centers, edge computing facilities, and scalable cold-plate liquid-cooled computing scenarios. It is suitable for deployments with one or more liquid-cooled cabinets, providing coolant distribution for liquid-cooled cabinets and supporting 19-inch and 21-inch form factors to enable multi-scenario compatibility. It facilitates high heat density deployment (50-200kW per standard cabinet) and adopts a redundant design for key sensors and pumps to ensure maximum operational safety. Cooling Capacity 50-80 kW Inlet Flow Rate 4.32-6.91 m³/h Outlet Flow Rate 4.56-7.29 m³/h Rated Power 0.8/1.4 kW Fluid Type Water / 25% EG W*D*H 450*850*175/536*900*175 mm

Soeteck In-Row CDU Coolant Distribution Unit For Data Center is a compact core component of liquid cooling solutions for AI-ready data centers, HPC clusters, and intelligent computing centers. It is designed for modular deployments with 10 or more liquid-cooled cabinets, making it ideal for CPU/GPU-intensive workloads (e.g., scientific computing and AI model training) by providing dedicated coolant distribution. Boasting a cooling capacity of 200kW–550kW and compatibility with various cabinet sizes, it incorporates redundant components (pumps, sensors, filters) and leak monitoring to ensure high reliability. Equipped with real-time water quality detection, it enables online coolant maintenance; additionally, it supports remote management via Modbus/BACnet protocols to optimize efficient data center operations. Cooling Capacity 350-600 kW Inlet Flow Rate 30.38-52.26 m³/h Outlet Flow Rate 31.86-55.49 m³/h Rated Power 4.8/11.6 kW Fluid Type Water / 25% EG W*D*H 600*1200*2000 mm

Hybrid CDU Coolant Distribution Unit For Data Center is a solution for small-to-medium data centers, hybrid data centers (air-cooling dominant with liquid-cooling compatibility), and intelligent computing data centers with cold-plate liquid cooling for large model deployment. It features air-liquid (shared infrastructure for air and liquid cooling) to simplify architecture, reduces costs by 20% compared to separate systems, dynamically balances air and liquid cooling ratios, supports flexible deployment of both server types for step-by-step data center upgrades, and simplifies operations by managing only one cooling system. Liquid Cooling Capacity 60/100/150 kW Air Cooling Capacity 40kW Air Volume 9500m³/h Rated Power 21.5/21.8/22.3 kW W*D*H 600*1200*2000 mm Weight 500kg

Smart Liquid-to-Air Rack CDU Coolant Distribution Unit is a solution for mixed cooling, zero-retrofit deployment, and fast delivery in data centers. It suits small-scale liquid-cooled server deployment in existing air-cooled data centers, allowing co-installation of air-cooled and liquid-cooled servers in the same cabinet to meet high-performance computing, AI, and general computing needs. It enables efficient heat dissipation in high-density environments, fits standard cabinet sizes for zero-retrofit installation in existing facilities, and reduces data center energy consumption and operational costs through liquid cooling technology. Cooling Capacity 20-120 kW Circulation Flow Rate 2.88-17.26 m³/h Rated Power 1.6/7 kW Fluid Type Deionized Water Pump Count 1 W*D*H 539*900*445/600*1200*2000 mm

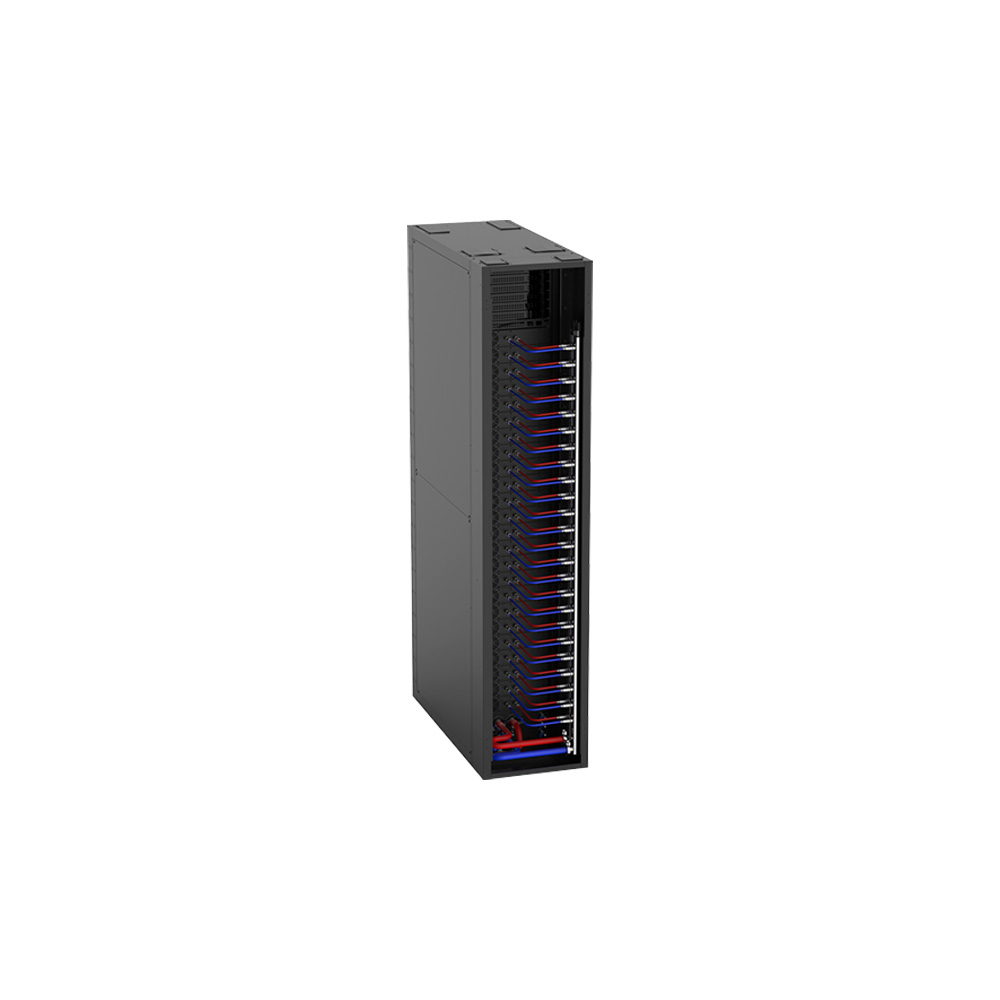

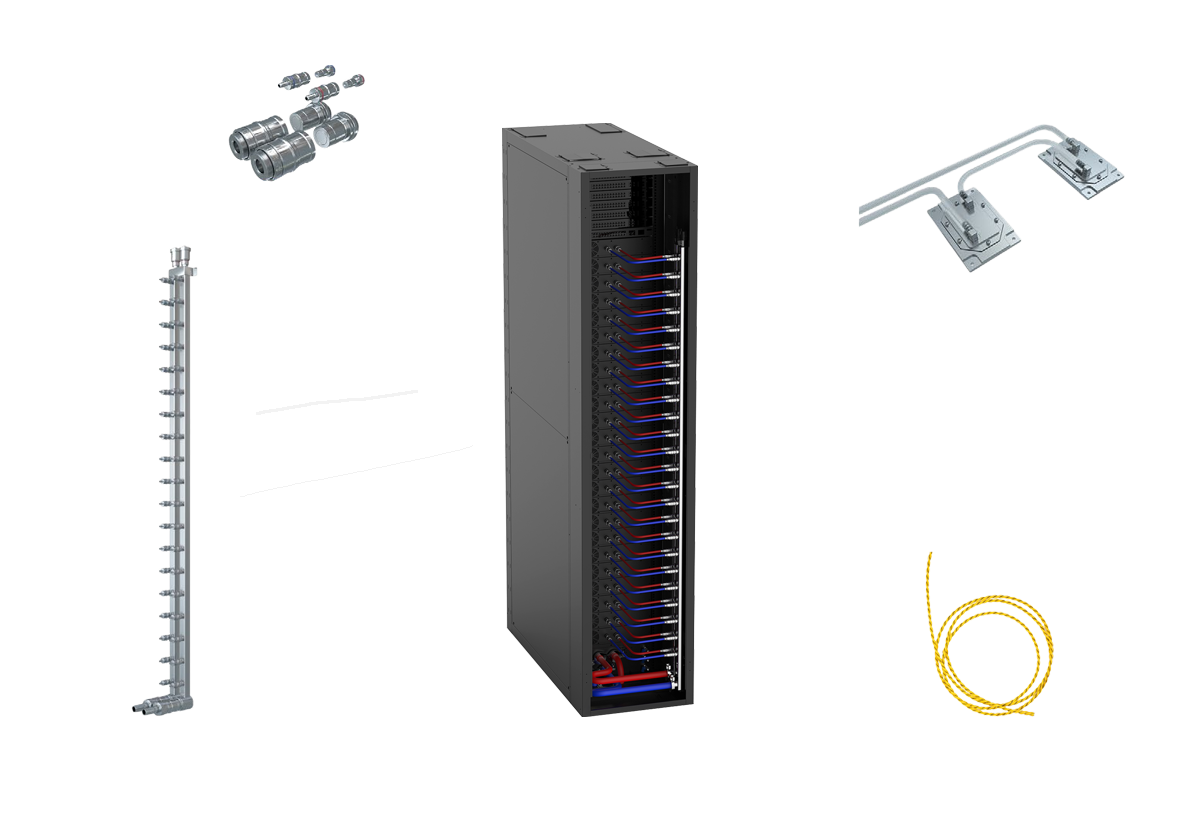

The Liquid Cooling Cabinet is a dedicated server cabinet designed for liquic cooling solutions in data centers, mainly composed of cabinet, manifold pipeline, power distribution system, exchange board and internal equipment. As the carrier of liquid cooling equipment, each device is connected with a special liquid cooling hose to ensure excellent heat dissipation effect, suitable for high-power density scenarios like AI computing and high-performance servers. It boasts core advantages of high strength, high precision, full independent control and full-cycle service. Equipped with quick coupling, cold plate and leakage detection for safety, it supports multiple cabinet dimensions and intelligent features (dual power supply, water leakage alarm, etc.) to realize reliable operation and comprehensive equipment protection. Dimension Options 600mm×1200mm×2000mm; 600mm×1200mm×2200mm; 600mm×1200mm×2500mm Available Rack Space 42U; 47U; 54U Rack Strength Over 1800kg Manifold Precision Vertical Flatness ±0.2mm Key Components Manifold, Quick Coupling, Cold Plate, Leakage Detection Special Features Upwards pipe, downwards pipe, dual power supply, water leakage alarm, water tray

The Manifolds for Data Center Liquid Cooling Solutions are key components connecting the liquid cooling source CDU (Cooling Distribution Unit) and cold plates in the main loop. Featuring strong corrosion resistance, high strength and easy processability, they are widely used in military and civilian fields. Available in single-tube (for quick connect) and double-row tube (for blind connect with welding process) types, these manifolds adopt ultra-precision manufacturing with position accuracy of ±0.15mm. They are produced in clean rooms under strict MES control, offering high reliability via dual pressure testing (gas and liquid), uniform flow distribution, and optional self-fastening and blind connection types. Diameter 30mm, 40mm, 50mm Material SUS304, SUS316L, SUS310L Connection Type Quick connect, Blind connect Operating Temperature -180℃~-40℃ Operating Medium Ethylene glycol, Propylene glycol, Deionized water Key Features MES control, Clean room production, Dual pressure testing, Uniform flow distribution, Optional self-fastening/blind connection

The AICoolit™ Quick Disconnect Couplings are high-reliability fluid connectors tailored for data center liquid cooling systems. Engineered for pressure-rated operation, they enable quick, leak-tight connection and disconnection of cooling circuits to support efficient maintenance and system scalability. Designed for long-term stability, these couplings combine durable stainless steel construction with compatible sealing solutions, ensuring seamless integration with diverse liquid cooling media and operating conditions. They streamline system workflows, minimize fluid loss, and enhance the availability of critical data center cooling infrastructures. Equivalent Diameter 4mm, 6mm, 8mm, 10mm (C Series); 2", 4", 6", 8" (UQD Series) Base Material SUS304, SUS316 Sealing Ring Material NBR, FKM (Fluororubber), EPDM, PTFE Operating Temperature -55℃ ~ 200℃ (varies by sealing ring material) Installation Mode Manual, Self-fastening Compatible Media Ethylene glycol solution, deionized water, hydraulic oil, anti-wear oil, silicone oil, fuel, brake fluid
