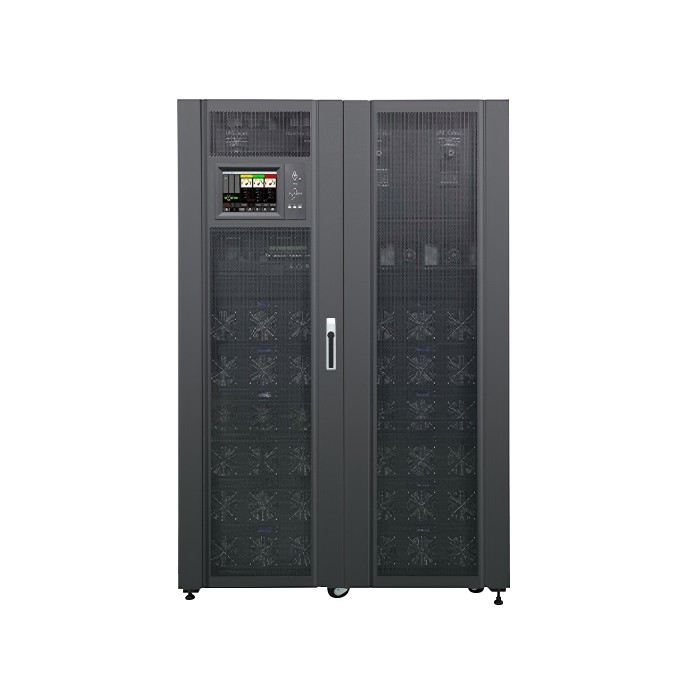

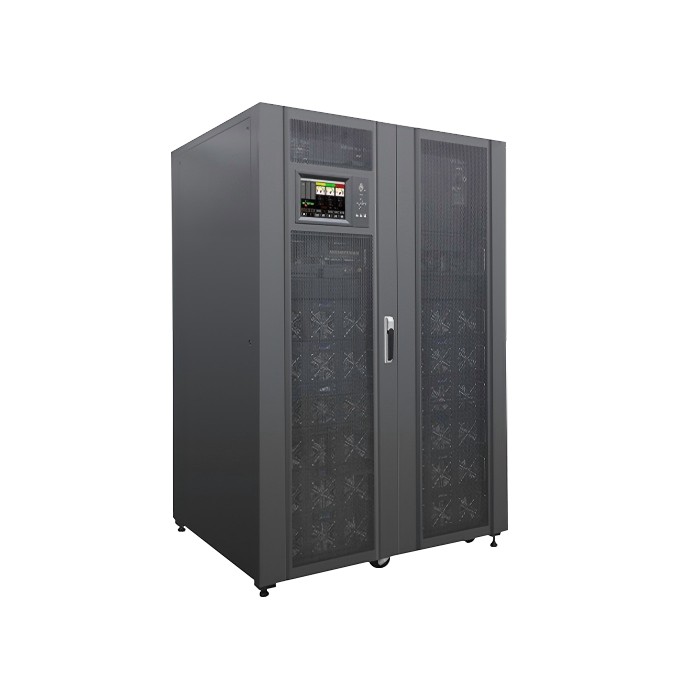

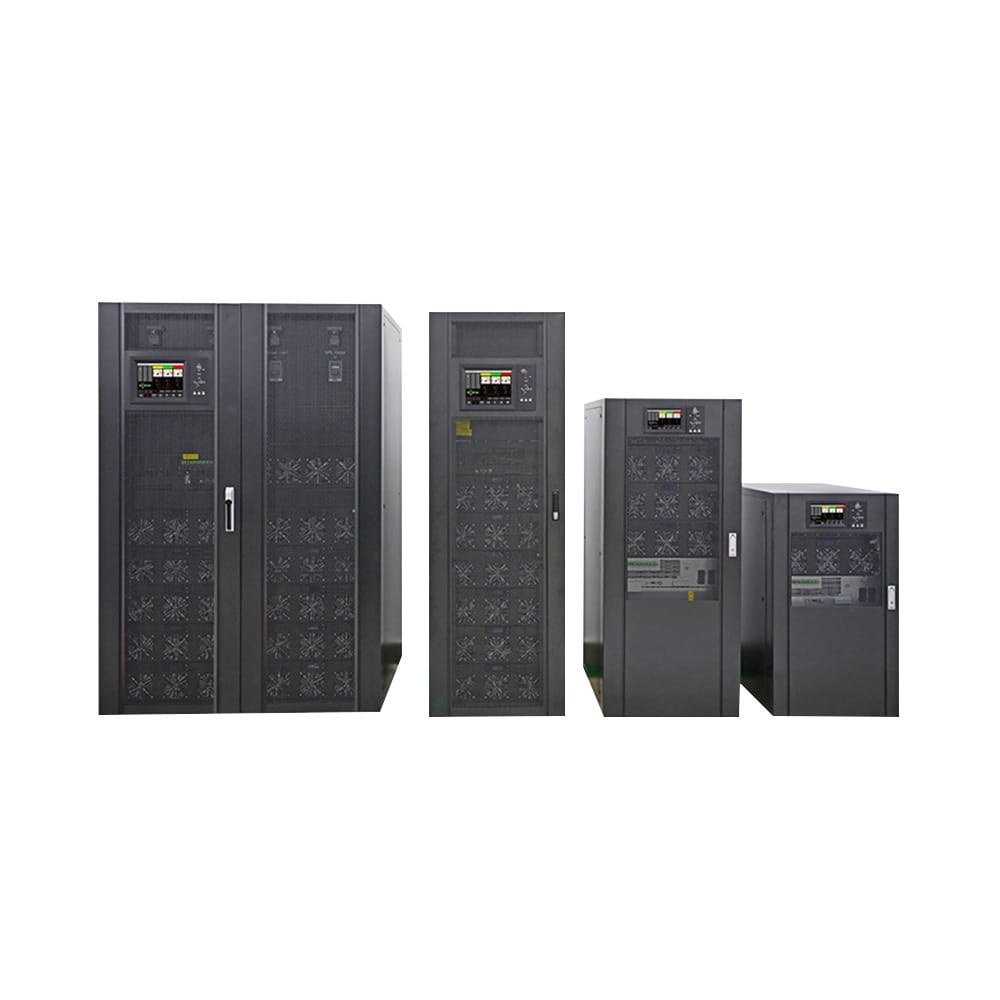

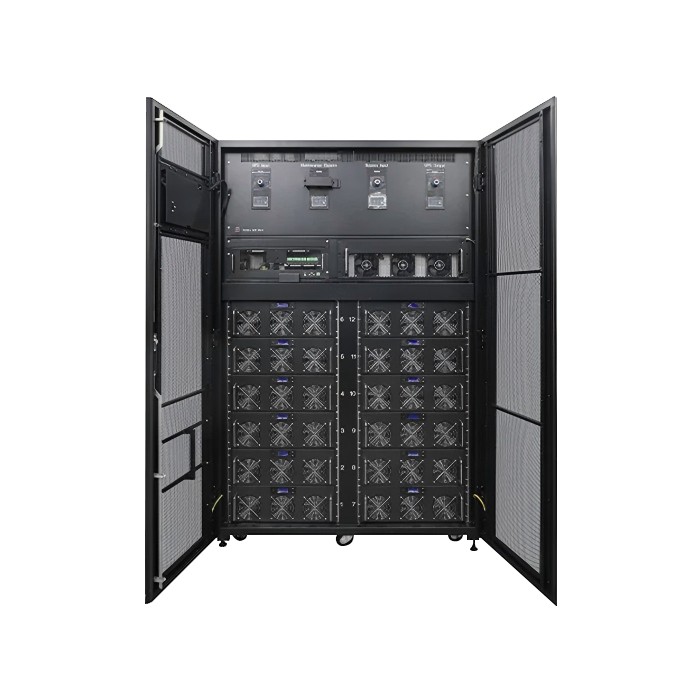

Soeteck Modular Online UPS 80kVA-600kVA, 40/50kVA Power Module

Soeteck Modular Online UPS 80kVA-600kVA with 40/50kVA Power Module uses three-in-three-out dual-conversion online operation, serving government, finance, communication, healthcare and other industries with ideal power protection. It features input PF>0.99, THDi<3%, efficiency>96%, DSP full-digital control, intelligent sleep mode, "three-stage" battery management and hot-swappable modules for energy-saving and easy maintenance with ultra-wide input voltage adapting to complex grids .

System Capacity	Connection
80KVA-600KVA	Three-phase five-wire system
Rated Voltage	Rated Frequency
380/400/415VAC	50/60HZ
Input power factor	Battery Cells
>0.99	40 batteries(32-44 optional)

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Model	SYM080/40X	SYM100/50X	SYM160/40X	SYM300/50X	SYM400/50X	SYM500/50X	SYM600/50X
Basic Parameters
Power Range	40 - 600 kVA
Way of Working	Three in and three out, dual transformation online operation
Capacity	80kVA	100kVA	160kVA	300kVA	400kVA	500kVA	600kVA
Module Cabinet Type	2 module cabinets	-	4 module cabinets	6 module cabinets	8 module cabinets	10 module cabinets	12 module cabinets
Input (MAIN INPUT)
Input Method	3P + N + PE
Input Voltage (Line Voltage)	380/400/415VAC
Input Power Factor	> 0.99
Current Distortion Rate (100% linear load)	THDi < 3%
Input Voltage Range (Line Voltage)	304-485VAC (full load); 304-138VAC (load linearly derating from 100% to 40%)
Input Frequency Range	40 - 70Hz
Battery (BATTERY)
Battery Voltage	± 240VDC (30~50 cells)
Charging Power	20% * active power
Charging Voltage Accuracy	± 1%
Bypass (BYPASS)
Bypass Rated Voltage (Line Voltage)	380/400/415VAC
Bypass Voltage Range	Configurable; Default: -20% to +15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40%
Bypass Frequency Range	Configurable (± 1Hz, ± 3Hz, ± 5Hz)
Output (OUTPUT)
Rated Output Voltage (Line Voltage)	380/400/415VAC
Rated Output Frequency	50/60Hz
Output Power Factor	1
Voltage Accuracy	±1.0%
Output Dynamic Response	<5% (20% - 80% - 20% step load); <20ms (0% - 100% - 0% step load)
Output Total Harmonic Distortion (THDv)	<1% (Linear Load); <5% (Nonlinear Load)
Inverter Overload Protection	<110%: 1 hour; 125%: 10 minutes; 150%: 1 minute; >150%: 200ms
Frequency Accuracy	0.1%
Tracking Range	Configurable, ± 0.5Hz~± 5Hz, default ± 3Hz
Tracking Rate	Configurable, 0.5Hz/S~3Hz/S, default 0.5Hz/S
Peak Ratio	3 : 1
Three-Phase Phase Accuracy	120° ± 0.5°
System (SYSTEM)
Main Road Mode Efficiency	≥ 96%
Display	LCD+LED+color touch screen (supports Simplified Chinese, Traditional Chinese, English, Russian, Italian, Korean, Portuguese, etc.)
EMC Standard	IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4(EFT); IEC61000-4-5(Surge)
Protection Grade	IP20
Operating Temperature & Humidity	0-40℃; 0-95% RH (no condensation)
Noise (1 Meter)	72dB@100% Load; 69dB@45% Load
Altitude	<1000m (normal operation); 1000-2000m (power reduction of 1% for every 100m height increase)
Optional Accessories	SNMP card, AS400 card, parallel component, lightning protection component, dust-proof device, LBS
Size & Weight
Host Size (WDH, mm)	6009801150	6509601600	65010952000	130011142000	130011142000	105011002000	-
Module Size (WDH, mm) (SYM40X / SYM50X)	510700178
Host Weight (Including Modules, kg)	210	-	350	490	700	900	1000
Note: Specifications are subject to change without further notice. Manufacturer: Hefei Shuyi Digital Power Co., Ltd.

Model

SYM080/40X

SYM100/50X

SYM160/40X

SYM300/50X

SYM400/50X

SYM500/50X

SYM600/50X

Basic Parameters

Power Range

40 - 600 kVA

Way of Working

Three in and three out, dual transformation online operation

Capacity

80kVA

100kVA

160kVA

300kVA

400kVA

500kVA

600kVA

Module Cabinet Type

2 module cabinets

4 module cabinets

6 module cabinets

8 module cabinets

10 module cabinets

12 module cabinets

Input (MAIN INPUT)

Input Method

3P + N + PE

Input Voltage (Line Voltage)

380/400/415VAC

Input Power Factor

> 0.99

Current Distortion Rate (100% linear load)

THDi < 3%

Input Voltage Range (Line Voltage)

304-485VAC (full load); 304-138VAC (load linearly derating from 100% to 40%)

Input Frequency Range

40 - 70Hz

Battery (BATTERY)

Battery Voltage

± 240VDC (30~50 cells)

Charging Power

20% * active power

Charging Voltage Accuracy

± 1%

Bypass (BYPASS)

Bypass Rated Voltage (Line Voltage)

380/400/415VAC

Bypass Voltage Range

Configurable; Default: -20% to +15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40%

Bypass Frequency Range

Configurable (± 1Hz, ± 3Hz, ± 5Hz)

Output (OUTPUT)

Rated Output Voltage (Line Voltage)

380/400/415VAC

Rated Output Frequency

50/60Hz

Output Power Factor

Voltage Accuracy

±1.0%

Output Dynamic Response

<5% (20% - 80% - 20% step load); <20ms (0% - 100% - 0% step load)

Output Total Harmonic Distortion (THDv)

<1% (Linear Load); <5% (Nonlinear Load)

Inverter Overload Protection

<110%: 1 hour; 125%: 10 minutes; 150%: 1 minute; >150%: 200ms

Frequency Accuracy

0.1%

Tracking Range

Configurable, ± 0.5Hz~± 5Hz, default ± 3Hz

Tracking Rate

Configurable, 0.5Hz/S~3Hz/S, default 0.5Hz/S

Peak Ratio

3 : 1

Three-Phase Phase Accuracy

120° ± 0.5°

System (SYSTEM)

Main Road Mode Efficiency

≥ 96%

Display

LCD+LED+color touch screen (supports Simplified Chinese, Traditional Chinese, English, Russian, Italian, Korean, Portuguese, etc.)

EMC Standard

IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4(EFT); IEC61000-4-5(Surge)

Protection Grade

IP20

Operating Temperature & Humidity

0-40℃; 0-95% RH (no condensation)

Noise (1 Meter)

72dB@100% Load; 69dB@45% Load

Altitude

<1000m (normal operation); 1000-2000m (power reduction of 1% for every 100m height increase)

Optional Accessories

SNMP card, AS400 card, parallel component, lightning protection component, dust-proof device, LBS

Size & Weight

Host Size (W*D*H, mm)

600*980*1150

650*960*1600

650*1095*2000

1300*1114*2000

1050*1100*2000

Module Size (W*D*H, mm) (SYM40X / SYM50X)

510*700*178

Host Weight (Including Modules, kg)

210

350

490

700

900

1000

Note: Specifications are subject to change without further notice. Manufacturer: Hefei Shuyi Digital Power Co., Ltd.
